Description
Compact ascending-bellows anesthesia platforms with high-resolution touchscreen and modular monitoring

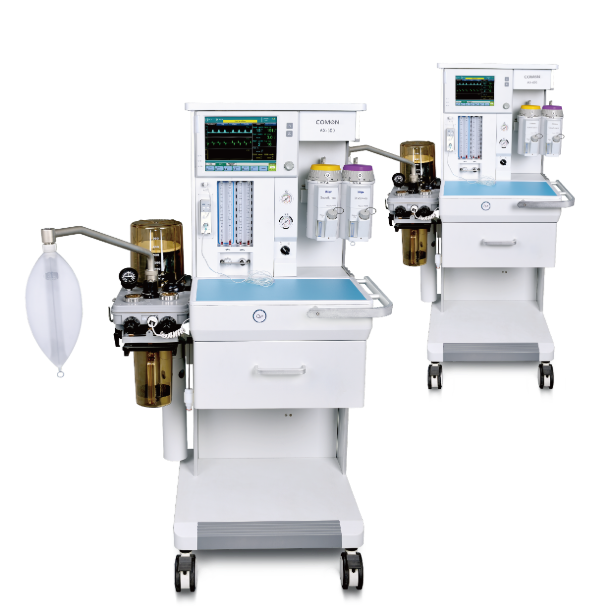

The Comen AX-400/AX-500 Anesthesia Workstations are designed for efficient peri-operative care with a focus on precision, flexibility and safety. These units employ a classic ascending-bellows pneumatic-drive system under electronic control to deliver accurate tidal volumes (down to ~15 mL) across adults, children and neonates. A high-resolution touchscreen (up to 12″) ensures intuitive operation, and modular options include BIS, gas-analysis (AG), CO₂ monitoring and active scavenging systems (AGSS). Dual backlit mechanical flowmeters, one-hand soda-lime canister replacement and automatic leakage-testing help streamline workflow while safeguarding ventilation accuracy (~7 % deviation) and minimizing dead-space. With comprehensive ventilation modes including volume control (VCV), pressure control (PCV), SIMV-VC/PC, PSV/CPAP, the AX-400/AX-500 support induction, maintenance, recovery and spontaneous-breathing transitions. Built for compact ORs, procedure rooms and pediatric suites, these workstations deliver high-end functionality in a versatile footprint.
Key Features & Technical Highlights
• Compact ascending-bellows pneumatic-drive with electronic control — delivers stable ventilation and sharp trigger response across patient groups.
• High-resolution touchscreen (AX-500 up to 12″) with intuitive UI — simplifies settings, monitoring and reduces training time.
• Full peri-operative ventilation mode suite (VCV, PCV, SIMV-VC/PC, PSV/CPAP) — supports full-life-cycle anesthesia from induction to spontaneous breathing.
• Modular monitoring and gas-analysis options (CO₂, AG, BIS), dual backlit flowmeters, one-hand soda-lime canister — enhances modularity, precision and ease of maintenance.
• Dual flow-tube mechanical flowmeter for minimal/low-flow anesthesia, automatic leakage test, compact circuit design — reduces waste gas, supports low-flow techniques and maintains clinical accuracy.
Workflow & Clinical Use
In the operating theatre, the AX-400/AX-500 streamline workflow by combining a compact footprint, high-end ventilation and modular monitoring in one station; surgeons and anesthetists benefit from quick setup and intuitive interfaces, while patients receive consistent ventilation performance and smooth transit from mechanical to spontaneous breathing.
